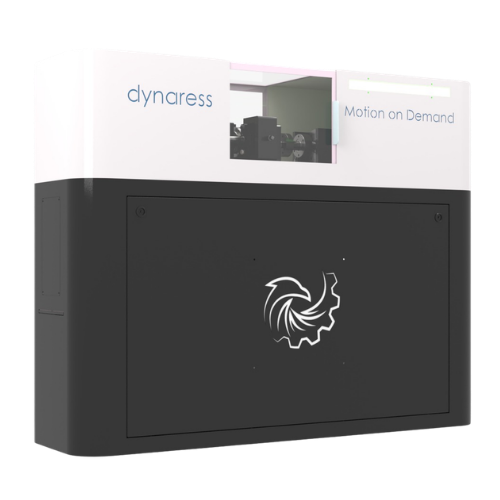

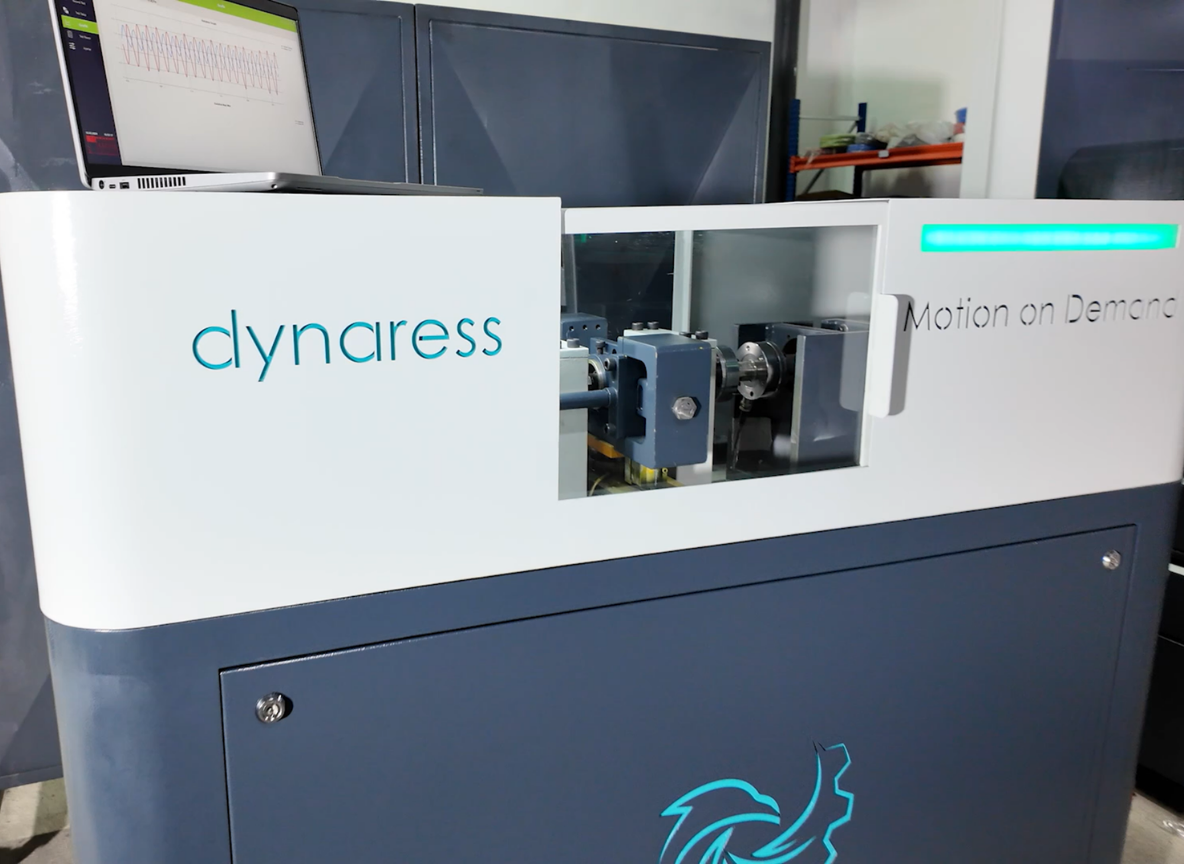

3 Axis Dynamic Bushing Test System
Dynamic bushing characterization and durability processes are executed with superior precision and process stability through the advanced multi-axis testing technology developed by Dynaress. Within its high-performance architecture, the system applies complex dynamic loads to evaluate the elastomeric properties and fatigue life of bushings under real-world operational conditions. Designed for rigorous R&D and quality validation environments, the system ensures consistent results, maximizing testing efficiency and structural reliability.
Key Features and Capabilities:
Dynamic Multi-Axis Loading: Simultaneous application of radial, axial, and torsional forces for comprehensive bushing characterization.
High-Frequency Performance: Specialized execution of high-frequency dynamic tests to simulate intense vibration and road-load conditions.
Eco-Efficient Electric Drive: Sustainable, oil-free operation with precision electric actuators, eliminating the maintenance and environmental risks of hydraulics.
Real-Time Characterization: Continuous monitoring of stiffness, damping, and hysteresis parameters through high-fidelity sensors.
Automated Endurance Cycles: Capable of long-term fatigue testing with millions of cycles to ensure component lifespan.
Advanced HMI Infrastructure: Sophisticated interface enabling real-time graphical monitoring and complex data analysis.
Full Data Traceability: Integrated data acquisition and reporting infrastructure supporting rigorous quality assurance standards.
Modular Test Fixtures: Configurable mechanical structure allowing easy adaptation to various bushing types and sizes.
This system is developed to meet the demands of precision engineering, structural durability, and digital validation, offering a high-performance solution for the characterization of critical automotive components.
Engineering Approach
Bushing test systems are engineered with a focus on multi-axial synchronization and high-frequency dynamic response. The mechanical architecture is designed to handle complex stress vectors simultaneously, ensuring structural integrity while providing the necessary stiffness to eliminate parasitic vibrations during high-precision characterization.
Process Validation
Beyond standard testing, the system provides deep insights into elastomeric behavior by generating precise force-displacement curves and damping hysteresis loops. Integrated analysis tools allow for the real-time evaluation of dynamic stiffness and loss angles, transforming raw test data into actionable engineering reports for R&D validation.
Operational Efficiency
The shift from hydraulic to full-electric actuation drastically reduces the total cost of ownership by eliminating oil-related maintenance and high energy consumption. The user-centric interface and modular fixture design enable rapid setup changes between different bushing types, maximizing laboratory throughput without compromising environmental standards.
