MOTION ON DEMAND

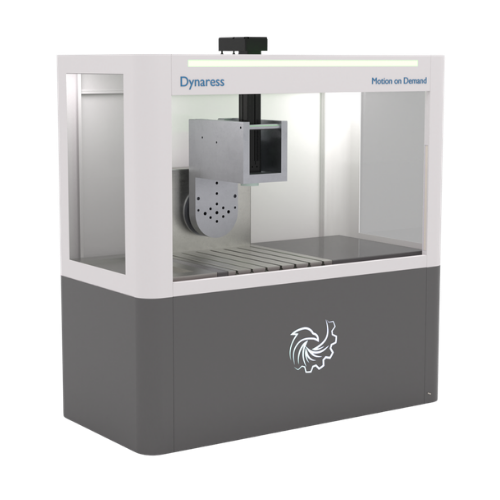

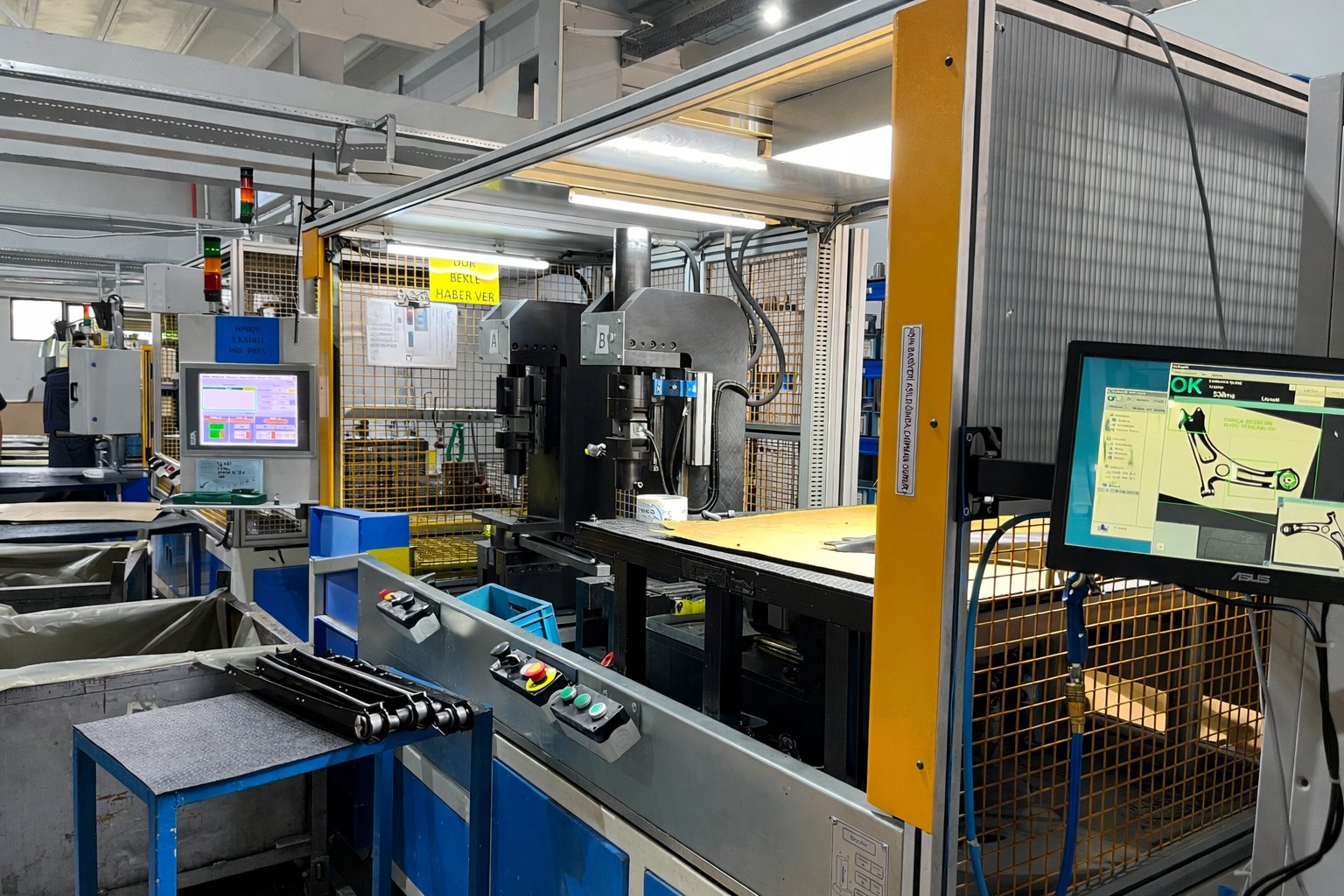

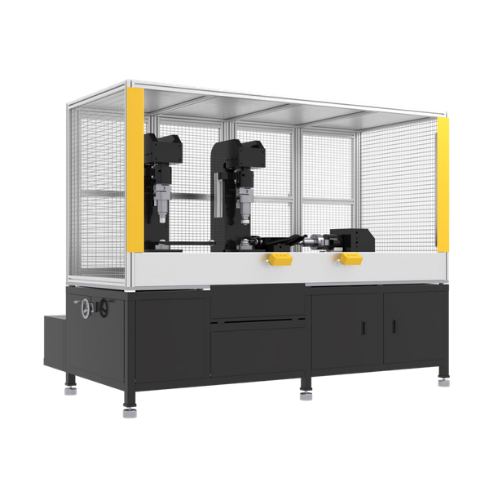

Modular Fixture Control Arm Assembly Machine
Assembly processes are carried out with high precision, flexibility, and process stability through the multi-head and adjustable assembly systems developed by Dynaress. The system is designed to adapt to different product geometries and can be effectively used for a wide range of components such as control arms, ball joints, bushings, and rubber-to-metal parts. Thanks to its multi-axis and modular structure, assembly operations are executed in a controlled, repeatable, and traceable manner.
With its adjustable head configuration and wide force range (10–400 kN), the system enables both horizontal and vertical operations. The 0–90° angular capability supports various assembly scenarios, while the flexible structure allows rapid changeovers between different product types, increasing production efficiency and minimizing downtime.
Key Features and Capabilities:
- Multi-head structure enabling multiple operations within a single system
- Wide force range of 10–400 kN for versatile applications
- Capability to operate in both horizontal and vertical axes
- 0–90° adjustable angle for flexible assembly configurations
- Multi-purpose use for control arms, ball joints, bushings, and rubber-to-metal parts
- Fast fixture and tooling changeover enabling reduced setup times (SMED compatible)
- Force and position-based process control ensuring high quality assurance
- Advanced HMI infrastructure for process monitoring and operator guidance
- MES integration enabling digital tracking of production data
- Expandable system with optional modules such as laser marking, labeling, and cobot integration
This system is developed to meet the demands of flexible manufacturing, enabling rapid adaptation to different product types while maintaining high quality standards and sustainable production performance.
Engineering Approach
Assembly systems are developed with a focus on flexibility, precision, and adaptability to different product geometries. The multi-head structure and adjustable configurations enable optimized operations across various assembly scenarios.
Process Validation
Force and position parameters are continuously monitored and controlled to ensure process reliability. Integrated data acquisition systems and MES connectivity enable full traceability and quality assurance.
Operational Efficiency
The system enables rapid changeovers and efficient workflow through its modular design and adjustable structure, minimizing downtime while maintaining stable production performance.
Smart Engineering
Systems are developed with a focus on digital integration, flexibility, and intelligent process management, enabling efficient adaptation to different production scenarios.
Digital Process Control
Process parameters are continuously monitored, analyzed, and controlled through advanced software systems, ensuring full reliability and traceability.
Connected Production
With IoT, MES, and automation integrations, the system enables connected and data-driven manufacturing, improving efficiency and reducing operational risks.
MOTION ON DEMAND

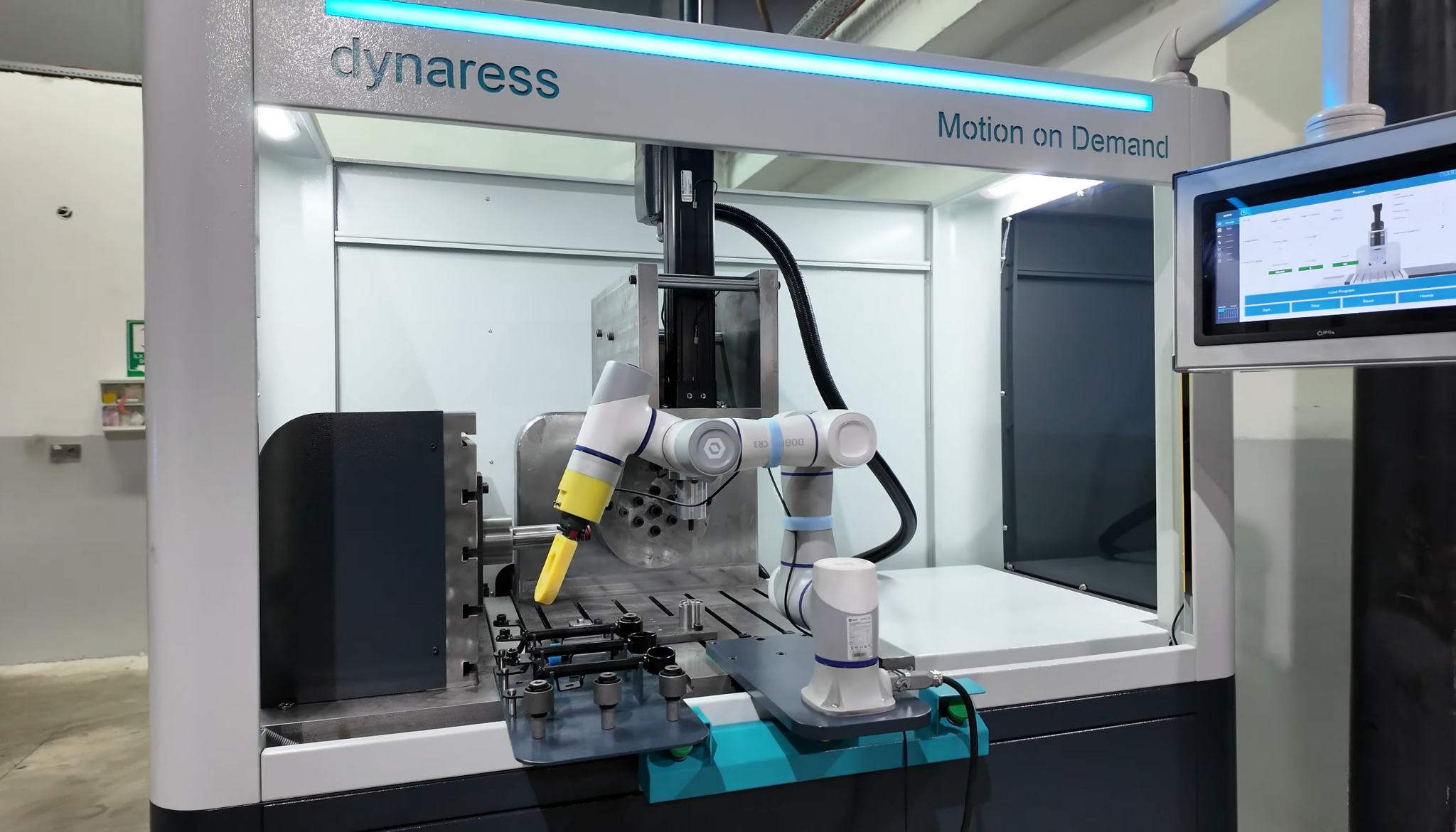

Assembly & Riveting Systems for Smart Manufacturing
Assembly and riveting processes are carried out with high precision, flexibility, and digital integration capabilities through the smart manufacturing systems developed by Dynaress. The system is designed to support a wide range of components such as control arms, ball joints, bushings, and rubber-to-metal parts, offering a modular structure that can quickly adapt to changing production requirements.
With its angle-adjustable head, horizontal fixture configuration, and integrated cobot support, different assembly scenarios can be performed within a single system while minimizing operator dependency. The advanced software infrastructure continuously monitors process parameters, provides real-time graphical analysis, and ensures process reliability through instant alarm management.
Thanks to IoT and MES integration, production data can be digitally tracked, analyzed, and reported, enabling continuous improvement and optimized manufacturing performance. This structure provides a smart manufacturing environment that supports traceability, sustainability, and efficiency targets.
Key Features and Capabilities:
- Multi-purpose system combining assembly and riveting operations in a single platform
- Angle-adjustable head enabling adaptation to different product geometries
- Horizontal fixture configuration ensuring stable and precise assembly
- Cobot integration for automated and semi-automated operation
- Advanced software infrastructure for process monitoring, graphical analysis, and alarm management
- Force and position-based process control ensuring high quality assurance
- IoT and MES integration enabling digital data tracking and production optimization
- Flexible production with rapid changeover capability and reduced downtime
- Modular structure allowing easy adaptation to different applications
- Smart automation approach reducing operator dependency
This system is developed in line with Industry 4.0 requirements, offering an innovative assembly solution that combines digitalization, flexibility, and high performance in modern production environments.
